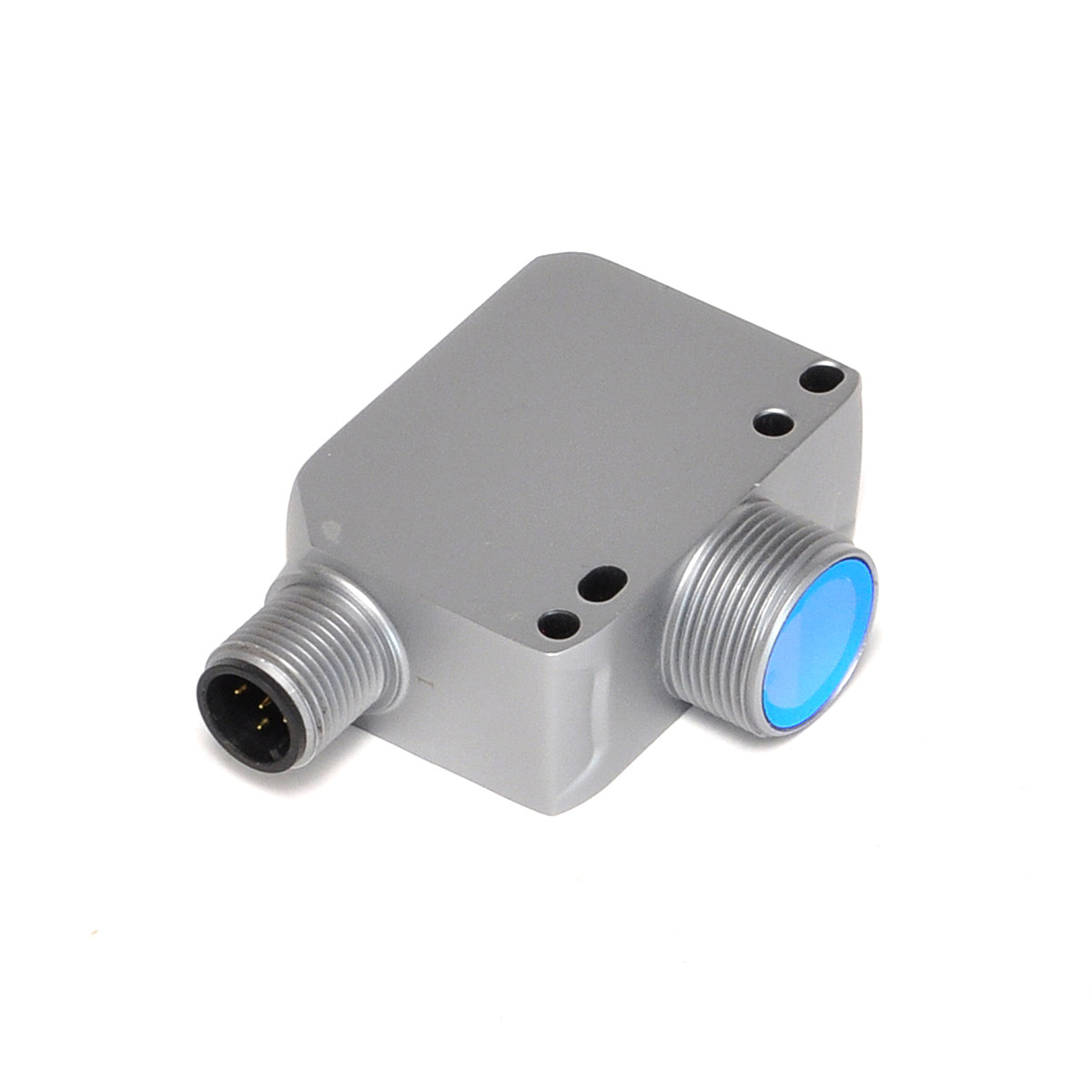

H45-CMOS-0500IOL-SA-M12-5QD

For PDF Spec:

For STEP File:

Type:

CMOS Distance Laser Photoelectric"

Sensing Mode:

Triangulation

Sensing Range:

25-500 mm

Light Source:

Red Laser (633nm) Class 1

Light Spot Size:

1.5 x 2 mm @ 500 mm

Indicator LEDs:

Output: Yellow Power: Green

IO-Link:

Yes V1.2

Supply Voltage:

10-30 V DC

Max Load Current:

<= 100 mA

No Load Current:

<= 25 mA

Short Circuit Protection:

Yes

Reverse Polarity Protection:

Yes

Output Type:

PNP/NPN Selectable

Operation Mode:

Light On / Dark On Selectable

Switching Frequency:

400 Hz

Sensitivity Adjustment:

Teachable

Housing Material:

Zinc Alloy

Lens Material:

Glass

IP Rating:

IP67

Timer Options:

Yes (On Delay, Off Delay, One Shot)

Amb Operating Temp:

-10 C to +50 C

Vibration Resistance:

EN 60068-2-6

Shock Resistance:

EN 60068-2-27

Cable or Connector:

M12 A coded 5 Pin

Description:

H45 Distance Laser, 25-500 mm, PNP/NPN & LO/DO Selectable, M12 5 Pin QD
