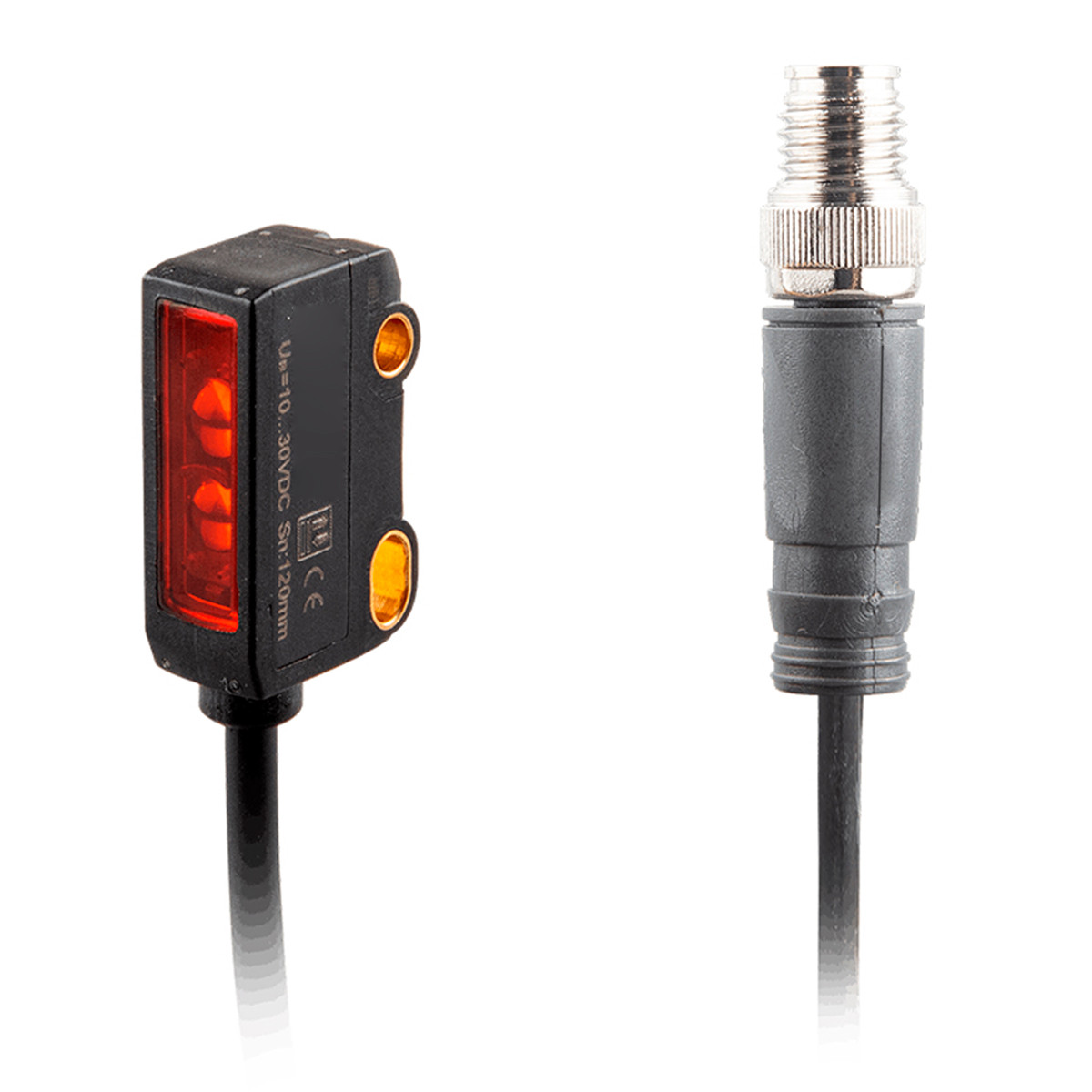

H12-TTX-2000D-M8-3P0.3

For PDF Spec:

For STEP File:

Type:

Miniature Photoelectric

Sensing Mode:

Thru-Beam Transmitter

Sensing Range:

2 m

Light Source:

Infra RED LED (880nm)

Light Spot Size:

15 mm @ 200 mm / 55 mm @ 600 mm / 80 @ 1000 mm

Indicator LEDs:

Power: Green

IO-Link:

No

Supply Voltage:

10-30 V DC

Max Load Current:

-

No Load Current:

<= 18 mA

Short Circuit Protection:

Yes

Reverse Polarity Protection:

Yes

Output Type:

-

Operation Mode:

-

Switching Frequency:

-

Sensitivity Adjustment:

-

Housing Material:

PC+PBT

Lens Material:

PC

IP Rating:

IP67

Timer Options:

-

Amb Operating Temp:

-10 C to +50 C

Vibration Resistance:

EN 60068-2-6

Shock Resistance:

EN 60068-2-27

Cable or Connector:

M8 3 Pin 0.3 m Pigtail

Description:

H12 Miniature Photoelectric, Thru-Beam Transmitter, 2 m, 10-30 V DC, -, -, M8 3 Pin 0.3 m Pigtail
