R-MA4TZ-Y070.3+R-FA4TZ-Y070.3

For PDF Spec:

For STEP File:

Cable Type:

Double Ended Cable

Connector A:

M12 A-Coded Male Angled

Connector B:

M12 A-Coded Female Angled

Cable Length:

0.3 m

Pins:

4 Pin

Terminal Type:

-

Locking System:

Screw Lock

Rated Current:

4 A

Rated Voltage:

250 V AC / 300 V DC

Wire Gauge:

24 AWG

Stranding:

0.1x32

Contact Carrier:

TPU

Body:

TPU

Contact Material:

CuSn

Contact Plating:

Au

Jacket Type:

PUR/PVC

Coupling Nut:

Nickle Plated Brass

Protection Class:

IP 68

O-Ring:

Viton

Temperature Range:

-25 C - +90 C

Extra Cable Protection:

-

LED:

-

Description:

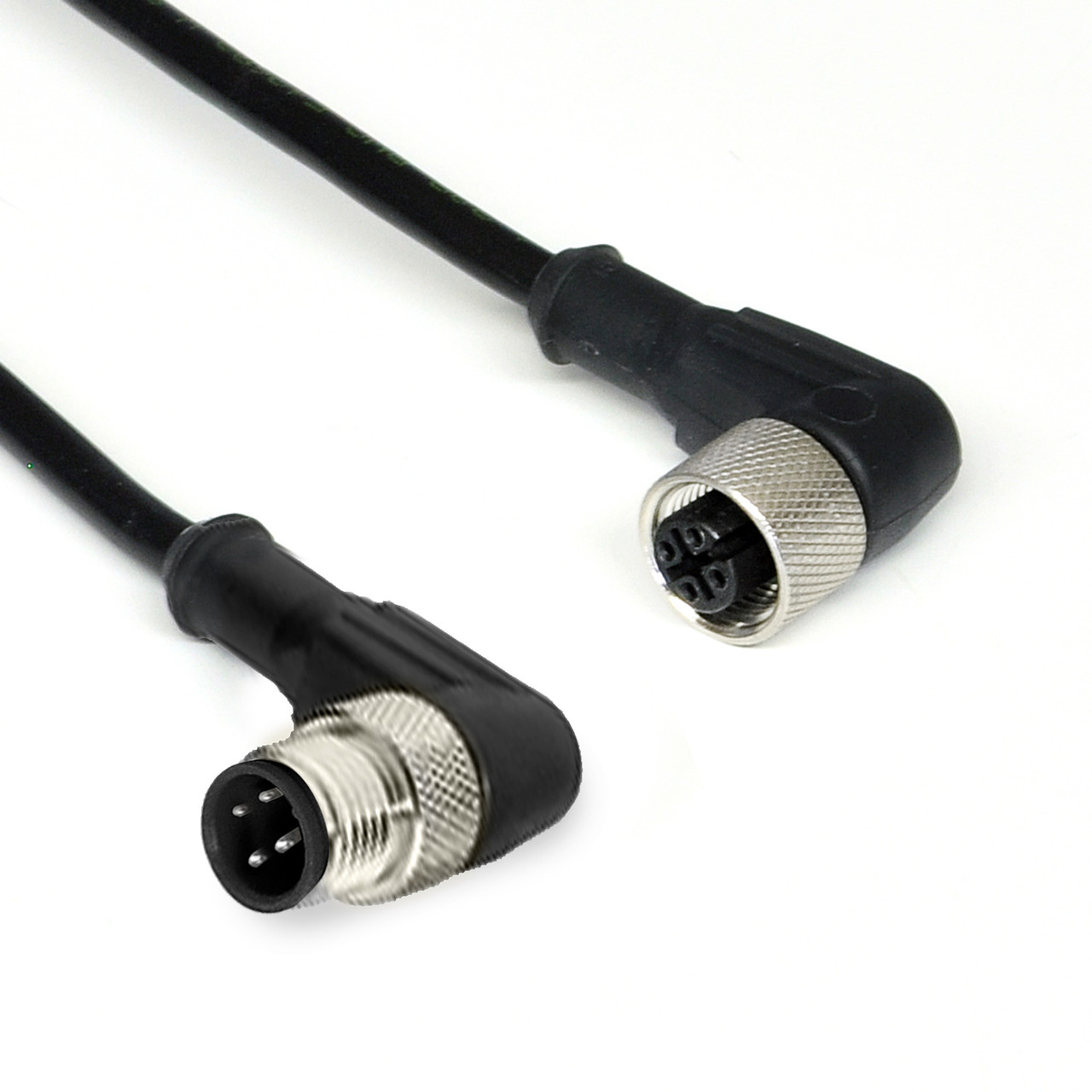

Double Ended Cable, M12 Male Angled, M12 Female Angled, PUR/PVC, 0.3 m, 4 Pin
