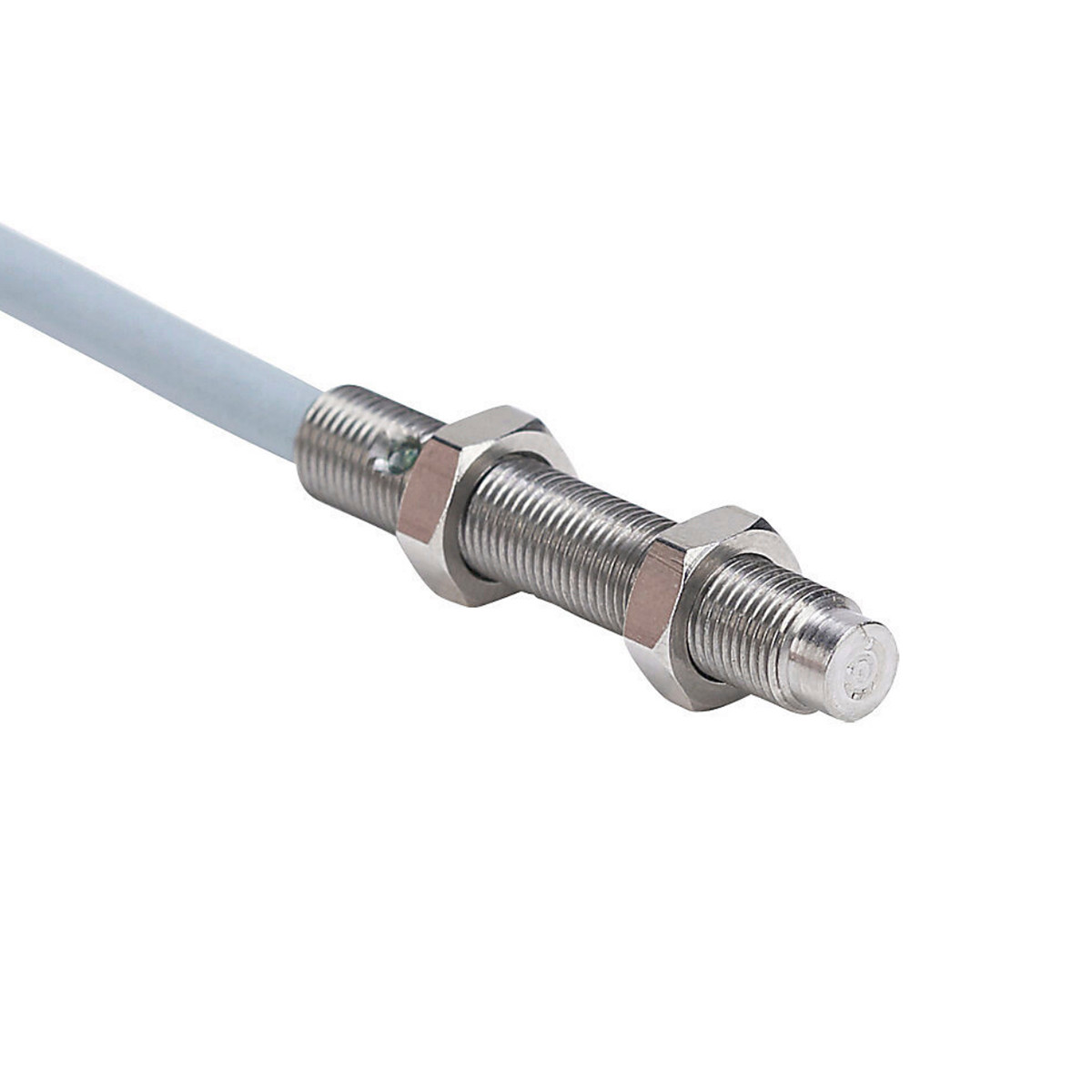

LCS2-0503P-A3U0.2/P8

For PDF Spec:

For STEP File:

Body Length:

30 mm

Connection:

Pre-Leaded 3 Wire

Connector:

0.2 m Pigtail with M8 3 pin Connector

Current Consumption:

<10 mA

Diameter:

M5

EMC Rating:

IEC 60947-5-2 (7.2.3.1) 1Kv

Housing Material:

V2A Stainless Steel

IP Rating:

IP67

Leakage Current:

<0.1 mA

Max Current:

<200 mA

Mounting Style:

Unshielded

Operating Temperature:

-25 C - +85 C

Operating Voltage:

10-30 V DC

Output Function:

Normally Open

Output Type:

PNP

Overload Trip Point:

220mA

Response Time:

-

Reverse Polarity Protected:

Yes

Sensing Face Material:

V2A Stainless Steel

Sensing Range:

3 mm Range

Shape:

Cylindrical

Type:

Long Range MetalHead

Shock Resistance:

EC 60947-5-2 / 7.9

Short Circuit Protected:

Yes

Weld Spatter Resistant:

No

Surge Current:

N/A

Switching Frequency:

≤ 1200Hz

Weld Field Immune:

No

Description:

M5, 3 mm Range, PNP, Normally Open
