Product Description

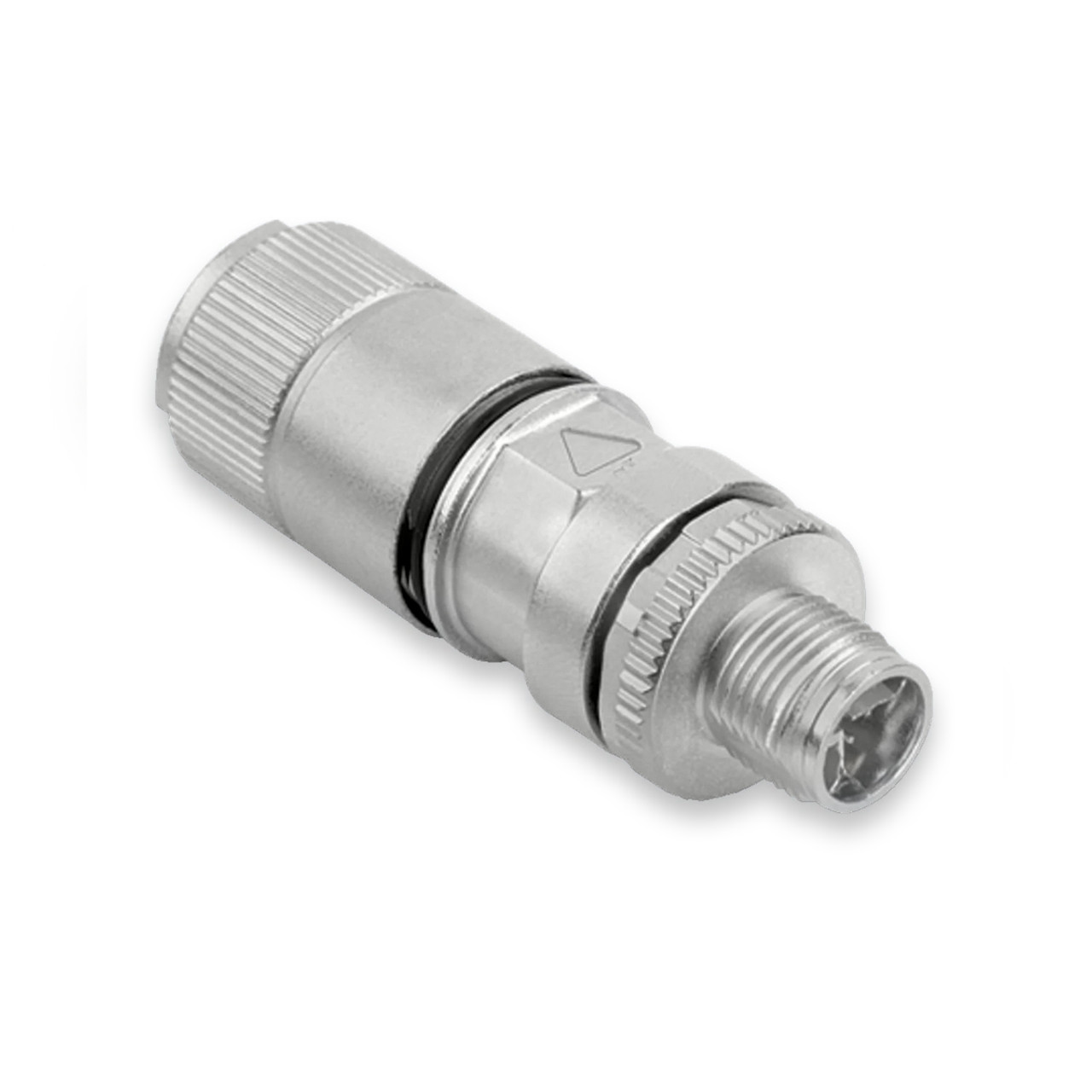

Industrial Ethernet, Field Connector, M12 X-Coded Male Straight, IDC Terminals
Product Videos
Custom Field
For PDF Spec
For STEP File
Cable Type Field Connector
Connector B M12 X-Coded Male Straight
Pins 4 Pin
Terminal Type IDC
Rated Current 0.5 A
Rated Voltage 50 VAC / 60 VDC
Wire Gauge 22-27 AWG
Contact Carrier PA6
Body CuZn, Ni Plated
Contact Material CuZn
Contact Plating Au
Coupling Nut CuZn, Ni Plated
Protection Class IP 67
O-Ring NBR
Temperature Range -40 C - +85 C
Description Field Connector, M12 X-Coded Male Straight, 4 Pin, IDC
