DS-MS4TZ-T974+DS-MS4

For PDF Spec:

For STEP File:

Cable Type:

Double Ended

Connector A:

M12 D-Coded Male Straight

Connector B:

M12 D-Coded Male Straight

Length:

4 m

Locking System:

Screw

Rated Current:

4 A

Rated Voltage:

25 VAC / 60 VDC

Wire Gauge:

2x2x24AWG

Shielded:

Yes to coupling nut

Contact Carrier:

PUR

Molded Body:

PUR

Contact Material:

CuZn

Contact Plating:

Au

Jacket Type:

TPE

Coupling Nut:

Zinc Die-cast Nickel-Plated

Protection Class:

IP67

Temperature Range:

-40 C - +80 C

Description:

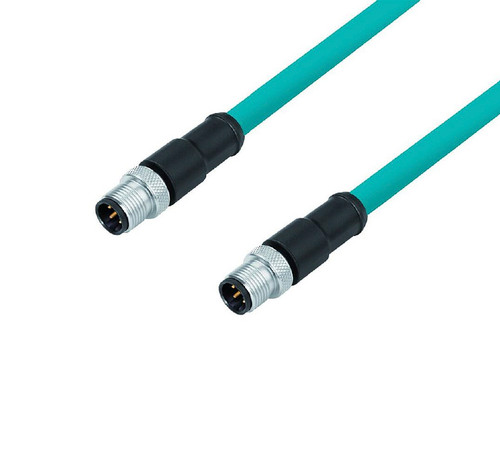

Industrial Ethernet, Double Ended, M12 D-Coded Male Straight, M12 D-Coded Male Straight, 4 m, TPE
